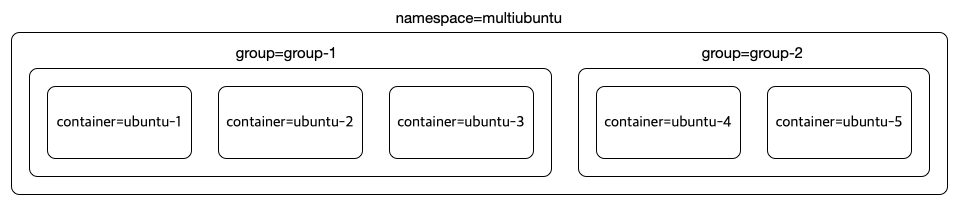

Multiubuntu

multiubuntu
  1. 1.
    Deployment
    To deploy the multiubuntu microservice, please run the following commands.
    $ cd KubeArmor/examples/multiubuntu
    ~/KubeArmor/examples/multiubuntu$ kubectl apply -f .
  2. 2.
    Use Cases
    To verify KubeArmor's functionalities, we provide sample security policies for the multiubuntu microservice.
    • Example 1 - Block a process execution
      • Deploy a security policy
        $ cd KubeArmor/examples/multiubuntu/security-policies
        .../multiubuntu/security-policies$ kubectl -n multiubuntu apply -f ksp-group-1-proc-path-block.yaml
      • Execute /bin/sleep inside of the ubuntu-1 pod
        $ POD_NAME=$(kubectl get pods -n multiubuntu -l "group=group-1,container=ubuntu-1" -o jsonpath='{.items[0].metadata.name}') && kubectl -n multiubuntu exec -it $POD_NAME -- bash
        # sleep 1
        (Permission Denied)
      • Check audit logs
        $ karmor log --json
        Run the above command in other terminal to see logs live.
        To install karmor cli tool [refer](https://github.com/kubearmor/kubearmor-client).
    • Example 2 - Block a file access
      • Deploy a security policy
        $ cd security-policies
        .../multiubuntu/security-policies$ kubectl -n multiubuntu apply -f ksp-ubuntu-5-file-dir-recursive-block.yaml
      • Access /credentials/password inside of the ubuntu-5 pod
        $ POD_NAME=$(kubectl get pods -n multiubuntu -l "group=group-2,container=ubuntu-5" -o jsonpath='{.items[0].metadata.name}') && kubectl -n multiubuntu exec -it $POD_NAME -- bash
        # cat /credentials/password
        (Permission Denied)
      • Check audit logs
        $ karmor log --json
