Application Behavior

KubeArmor has visibility into systems and application behavior. KubeArmor summarizes/aggregates the information and provides a user-friendly view to figure out the application behavior.

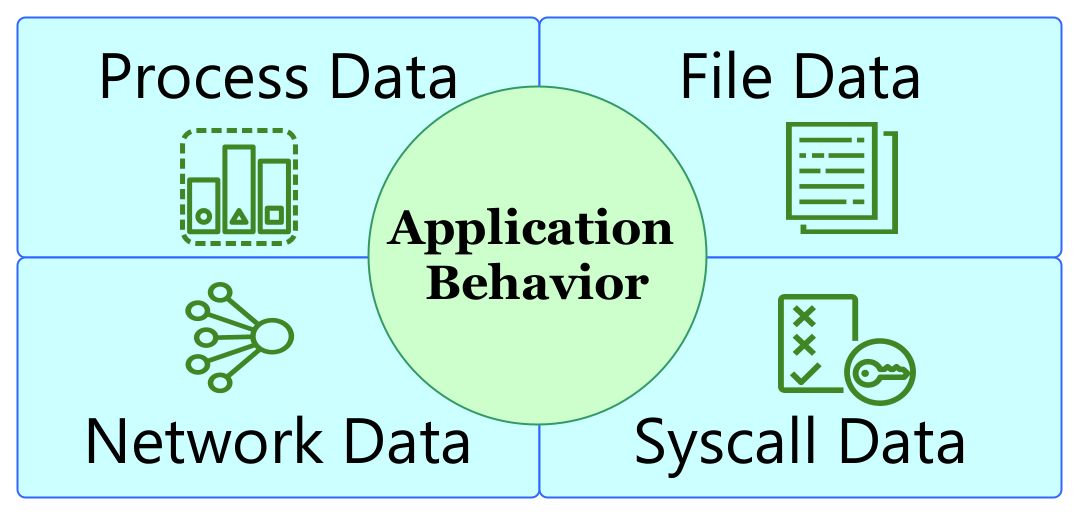

What application behavior is shown?

• Process data:

  • What are the processes executing in the pods?

  • What processes are executing through which parent processes?

• File data:

  • What are the file system accesses made by different processes?

• Network Accesses:

  • What are the Ingress/Egress connections from the pod?

  • What server binds are done in the pod?

How to get the application behavior?

karmor logs -n default --json --logFilter all --operation process

Get visibility into process executions in default namespace.

{
  "Timestamp": 1686491023,
  "UpdatedTime": "2023-06-11T13:43:43.289380Z",
  "ClusterName": "default",
  "HostName": "ip-172-31-24-142",
  "NamespaceName": "default",
  "PodName": "nginx-8f458dc5b-fl42t",
  "Labels": "app=nginx",
  "ContainerID": "8762eafc25a35ab90089f79703b86659989e8e547c2c029fb60f55d884355000",
  "ContainerName": "nginx",
  "ContainerImage": "docker.io/library/nginx:latest@sha256:af296b188c7b7df99ba960ca614439c99cb7cf252ed7bbc23e90cfda59092305",
  "ParentProcessName": "/x86_64-bottlerocket-linux-gnu/sys-root/usr/bin/runc",
  "ProcessName": "/bin/sh",
  "HostPPID": 3488352,
  "HostPID": 3488357,
  "PPID": 3488352,
  "PID": 832,
  "Type": "ContainerLog",
  "Source": "/x86_64-bottlerocket-linux-gnu/sys-root/usr/bin/runc",
  "Operation": "Process",
  "Resource": "/bin/sh -c cat /run/secrets/kubernetes.io/serviceaccount/token",
  "Data": "syscall=SYS_EXECVE",
  "Result": "Passed"
}
{
  "Timestamp": 1686491023,
  "UpdatedTime": "2023-06-11T13:43:43.291471Z",
  "ClusterName": "default",
  "HostName": "ip-172-31-24-142",
  "NamespaceName": "default",
  "PodName": "nginx-8f458dc5b-fl42t",
  "Labels": "app=nginx",
  "ContainerID": "8762eafc25a35ab90089f79703b86659989e8e547c2c029fb60f55d884355000",
  "ContainerName": "nginx",
  "ContainerImage": "docker.io/library/nginx:latest@sha256:af296b188c7b7df99ba960ca614439c99cb7cf252ed7bbc23e90cfda59092305",
  "ParentProcessName": "/bin/dash",
  "ProcessName": "/bin/cat",
  "HostPPID": 3488357,
  "HostPID": 3488363,
  "PPID": 832,
  "PID": 838,
  "Type": "ContainerLog",
  "Source": "/bin/dash",
  "Operation": "Process",
  "Resource": "/bin/cat /run/secrets/kubernetes.io/serviceaccount/token",
  "Data": "syscall=SYS_EXECVE",
  "Result": "Passed"
}
